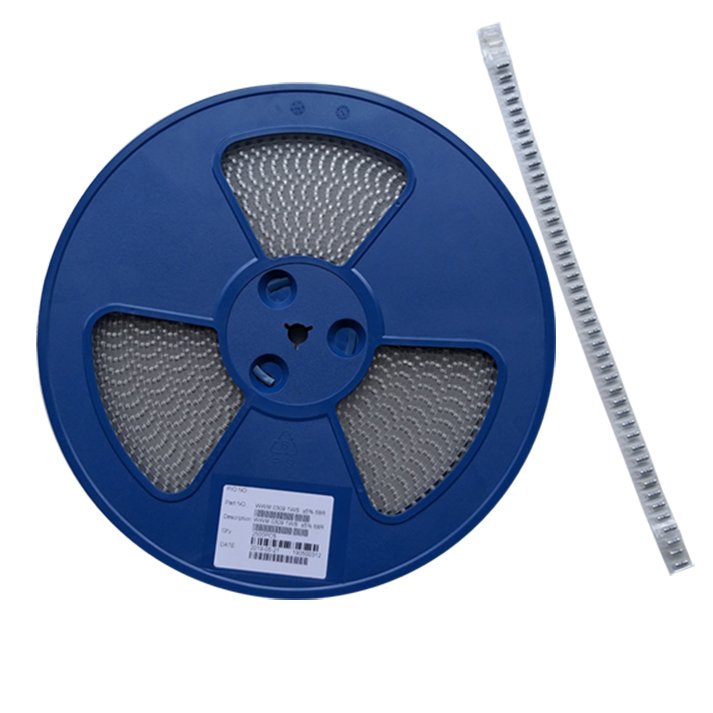

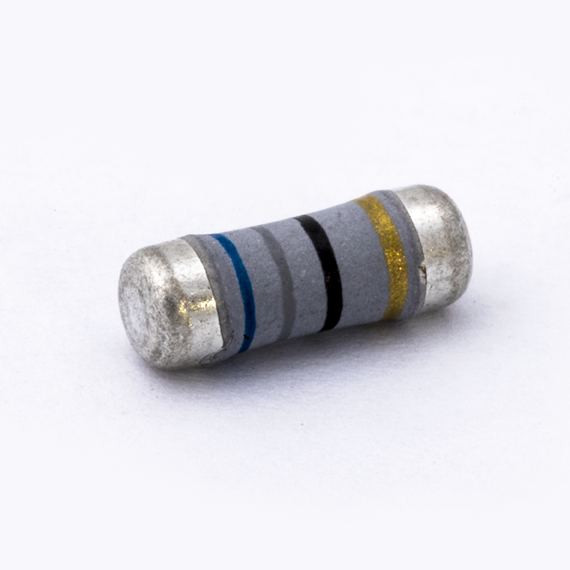

WIRE WOUND MELF RESISTORS

The WWS MELF series wire wound resistors are manufactured using high quality resistance wires wound on ceramic substrates. The resistors are coated using layers of Flame Proof Epoxy. The WWS MELF series resistors are suitable for surface mount technologies.

Add to wishlist
Categories: Resistors, SMD
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
  • ELECTRICAL PERFORMANCE
  • STANDARD RESISTANCE VALUES
Description

SPECIFICATION

Size Power Rating at 70°C DIMENSIONS IN MM Ambient Temperature(°C) Insulation Voltage(v) Resistance Range (Ω)
L D B Tolerances: 1% 2% 5%
0207 0.25W

0.5WS

1WSS

5.90 ± 0.5 2.20 ± 0.2 1.0 Min. -55 ~ 155 250 0.22~100
0309 0.5W

1WS

2WSS

3WSSS

8.50 ± 0.5 3.0 ± 0.2 1.3 Min. -55 ~ 155 350 0.22~300
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “WIRE WOUND MELF RESISTORS” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
ELECTRICAL PERFORMANCE

ests Condition Spec
Resistance Temp. CoeV. -55°C ~ 200°C ±200ppm/°C
Short Time Overload 5 times of rated wattag e for 5 sec for upto 3w10 times of rated wattage for 5 sec. above 3w ±2%
Rated Load Rated voltage for 30 min. ± 0.5%
Load Life 70°C on-off cycle 1,000hrs. ±3%
STANDARD RESISTANCE VALUES
E 24 Series
10 11 12 13 15 16 18 20 22 24 27 30
33 36 39 43 47 51 56 62 68 75 82 91
E 96 Series
100 102 105 107 110 113 115 118 121 124 127 130 133 137 140 143
147 150 154 158 162 165 169 174 178 182 187 191 196 200 205 210
215 221 226 232 237 243 249 255 261 267 274 280 287 294 301 309
316 324 332 340 348 357 365 374 383 392 402 412 422 432 442 453
464 475 487 499 511 523 536 549 562 576 590 604 619 634 649 665
681 698 715 732 750 768 787 806 825 845 866 887 909 931 953 976
Colour lst figure 2nd figure Multiplier Tolerance
Black 0 0 1
Brown 1 1 10 ± 1%
Red 2 2 100 ± 2%
Orange 3 3 1,000
Yellow 4 4 10,000
Green 5 5 100,000 ± 0.5%
Blue 6 6 1,000,000 ± 0.25%
Violet 7 7 10,000,000 ± 0.1%
Gray 8 8
White 9 9
Gold 0.1 ± 5%
