ZERO OHM RESISTOR / JUMPER WIRE

The WC12/WC25/WM12/WM25 zero ohm resistors are manufactured to give extremely low resistance value. A single black band indicates that the resistor is Zero ohm. The WJ jumper wires are manufactured using high grade tin plated electrolytic copper wire. This is provided in taped form having 5mm pitch.

Enquire Now
Categories: ,
Description

SPECIFICATIONS
Item Type DIMENSIONS IN MM
H L D d
Zero Ohm Resistor Carbon WC 12 27 ± 1 3.3 ± 0.2 1.7 ± 0.1 0.5 ± 0.05
WC 25 27 ± 1 6.0 ± 0.4 2.2 ± 0.1 0.6 ± 0.05
Zero Ohm Resistor Metal WM 12 27 ± 1 3.3 ± 0.2 1.7 ± 0.1 0.5 ± 0.05
WM 25 27 ± 1 6.0 ± 0.4 2.2± 0.1 0.6 ± 0.05
Jumper wire WJ 60 ± 1 NA NA 0.6 ± 0.05

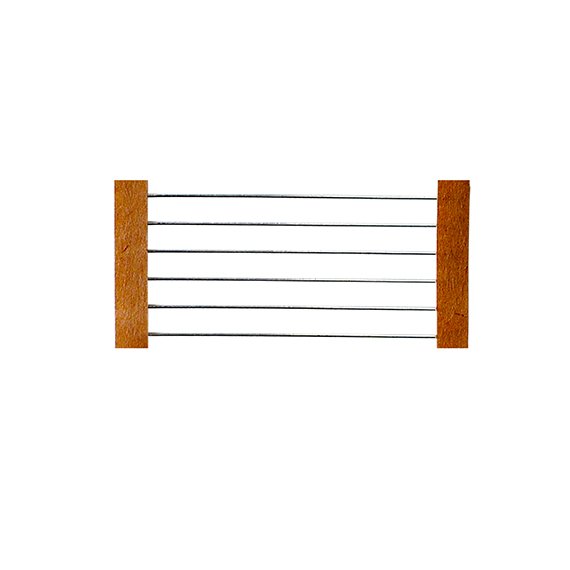

Jumper Wire

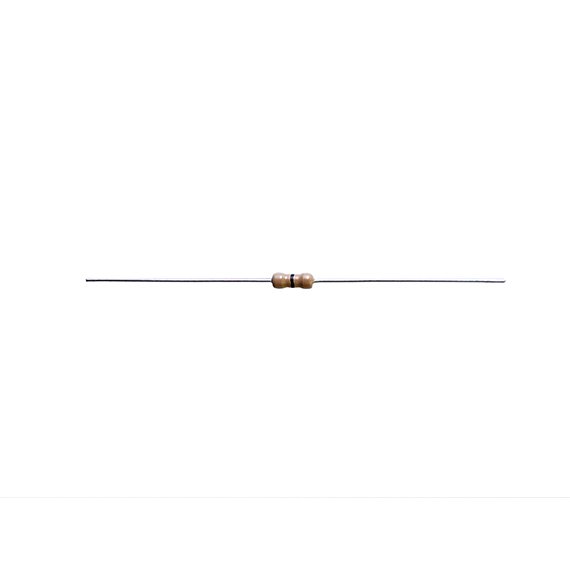

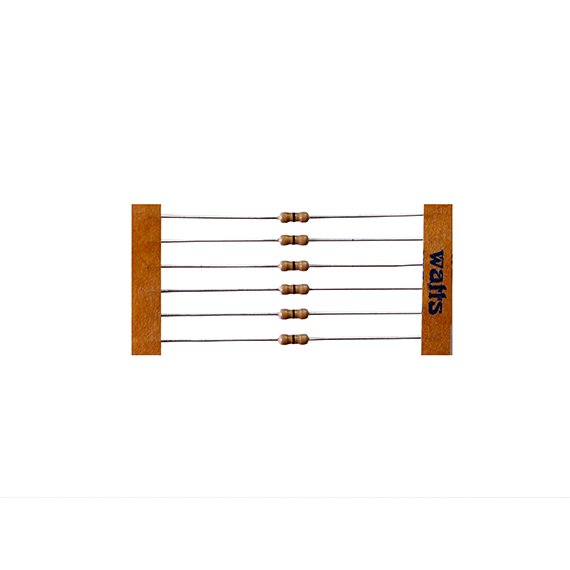

Zero Ohm Resister

Related products

CARBON FILM RESISTORS

,
The WCF Series Carbon Film Resistors are manufactured using mechanised high vacuum carbonising plants. This ensures a stable resistive film. The resistors are insulated with layers of light brown lacquer. The WCF series offer a wide range of power ratings (0.125 W, 0.25W, 0.4W, 0.5W, 1W, 2W & 3W) with a tolerance of ± 5%. and TCR ±1000 ppm/ºC.
Quick view

WIRE WOUND RESISTORS – NON INDUCTIVE

,
The WWN series wire wound resistors - non inductive have very low inductance (less than 1µH), high heat dissipation and low TCR. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWN series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional yellow band indicates that the resistor is Non Inductive. For resistors 6W and above, the value is printed on the resistor.
Quick view

METAL FILM RESISTORS

,
The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WMF series offer a wide range of power rating (0.125W, 0.25W, 0.40W, 0.50W, 1W, 2W & 3W), tolerances (0.1%, 0.5%, 1%, 2%, 5%) and TCRs (15, 25,50 & 100 ppm/ºC)
Quick view

METAL OXIDE FLAME PROOF RESISTORS

,
The WMO series Metal Oxide Film Resistors are manufactured using the latest technology to ensure a very stable resistive medium. The resistors are insulated with layers of flame proof epoxy. The WMO series offer a wide range of power rating (0.25W, 0.50W, 1W, 2W & 3W) having tolerance ranges of ±1 % & ±5 %
Quick view

METAL GLAZE RESISTORS

,
The WMG Series Metal Glaze Resistors are manufactured with the latest sintering process to get the most stable thick metal glaze film. The resistors are insulated with light blue lacquer. WMG series offers a wide range of power rating (0.25W, 0.50W, 1W & 2W) in tolerance ±1% and ±5% with TCR less than 100 ppm/ºC
Quick view

LOW OHM CURRENT SENSING RESISTORS CERAMIC ENCASED

,
The WCSB/WCST/WCSV low ohm current sensing resistors are manufactured with high purity Ni-Cr/Cu-Ni element. These are ceramic encased resistors. WATTS offers these resistors ranging from 2mΩ to 50mΩ, having power rating from 2W to 10W.
  • WCSB is axial type ceramic boat encased resistor.
  • WCSV is vertical type ceramic boat encased resistor.
  • WCST is axial type ceramic tube encased resistor.
Quick view

THICK FILM CHIP RESISTORS

The CR series Thick Film Chip Resistors are manufactured by screening a metal glaze layer on a high grade ceramic body. The different resistance values are obtained by using different compositions of metal glaze. The end contacts are made to ensure optimum solderability. The resistive layer is then given a protective coating. The CR series offer a wide range of power ratings from 1/20W to IW and are available in tolerance ranges of ± 1 % and ±5% % with insulation Resistance ≥ 1000MΩ. .Miniature size, excellent mechanical strength and electrical stability ensures reduced costs and enhances dependability.
Quick view

AUTOMOTIVE GRADE THICK FILM CHIP RESISTORS

The CR-A series Automotive Grade Thick Film Chip Resistors are manufactured by screening a metal glaze layer on a high grade ceramic body. The different resistance values are obtained by using different compositions of metal glaze. The end contacts are made to ensure optimum solderability and terminal strength. The resistive layers are given a non-flammable protective coating. The CR-A series is AEC-Q200 compliant. The CR-A series offer a wide range of power ratings from 1/20W to 1W and are available in tolerance ranges of ±1% and ±5% with insulation Resistance ? 1000M?. Miniature size, excellent mechanical strength and electrical stability ensures reduced costs and enhances dependability.
Quick view
