WIRE WOUND RESISTORS – NON INDUCTIVE

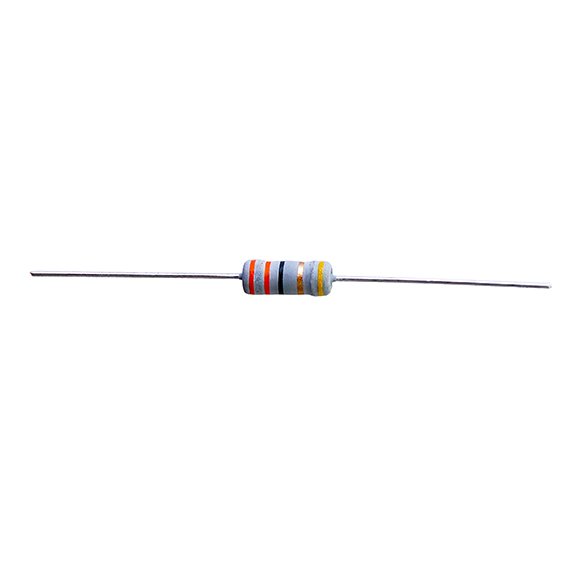

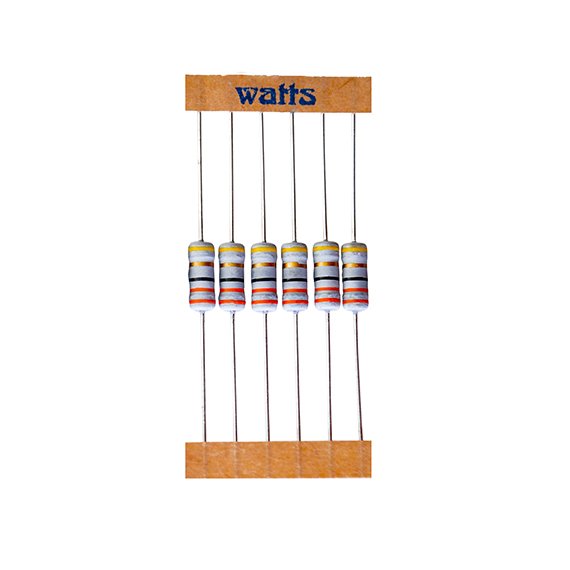

The WWN series wire wound resistors – non inductive have very low inductance (less than 1µH), high heat dissipation and low TCR. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWN series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional yellow band indicates that the resistor is Non Inductive. For resistors 6W and above, the value is printed on the resistor.

Description

SPECIFICATION
Type	Wattage	DIMENSIONS IN MM				Range in OHMS [Ω]		Tolerance	Dielectric withstanding Voltage
Type	Wattage	D	L	H	d	Range in OHMS [Ω]		Tolerance	Dielectric withstanding Voltage
WWN 1	1	3.20 ±0.5	9 ±0.5	27 ±1.0	0.60 ± 0.02	0.1	60	5%	350 V
WWN 2	2	4.25 ± 0.5	11 ± 1.0	27 ± 1.0	0.65 ± 0.02	0.1	60	5%	500 V
WWN 3/ WWN 4	3/4	5 ±0.5	15 ± 1.0	27 ±1.0	0.75 ± 0.05	0.1	220	5%	500 V
WWN 5	5	6 ± 0.5	18 ± 1.0	30 ± 1.0	0.75 ± 0.05	0.1	600	5%	500 V
WWN 6/ WWN 7/ WWN 8	6/7/8	8 + 1.0	25.00 ± 1.0	38 ±3.0	0.80 ± 0.05	0.1	1K	5%	500 V
WWN 9 / WWN 10	9/10	8± 1.0	30 ± 1.0	38 ±3.0	0.80 + 0.05	0.1	1 K	5%	1000 V

ELECTRICAL PERFORMANCE

Tests	Condition	Spec
Resistance Temp. Coeff.	-55°C ~ 200°C	± 200 ppm/°C
Short Time Overload	5 times of rated wattag e for 5 sec for upto 3w10 times of rated wattage for 5 sec. above 3w	±2%
Rated Load	Rated voltage for 30 min.	± 0.5%
Insulation Resistance	500 V megger	1,000MΩ
Load Life	70°C on-off cycle 1,000hrs.	±3%

STANDARD RESISTANCE VALUES

E 24 Series

10	11	12	13	15	16	18	20	22	24	27	30
33	36	39	43	47	51	56	62	68	75	82	91

Colour	lst figure	2nd figure	Multiplier	Tolerance
Black	0	0	1
Brown	1	1	10	± 1%
Red	2	2	100	± 2%
Orange	3	3	1,000
Yellow	4	4	10,000
Green	5	5	100,000	± 0.5%
Blue	6	6	1,000,000	± 0.25%
Violet	7	7	10,000,000	± 0.1%
Gray	8	8
White	9	9
Gold			0.1	± 5%
Silver			0.01	± 10%
