Home Resistors DIP WIRE WOUND CERAMIC ENCASED RESISTORS
WIRE WOUND CERAMIC ENCASED RESISTORS
WIRE WOUND CERAMIC ENCASED RESISTORS
Back to products
WIRE WOUND CERAMIC ENCASED RESISTORS
WIRE WOUND CERAMIC ENCASED RESISTORS

WIRE WOUND CERAMIC ENCASED RESISTORS

Tube, Axial Mounting

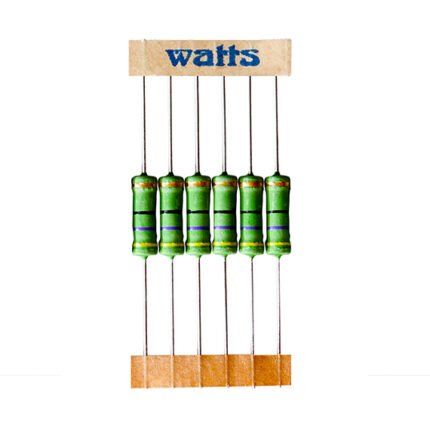

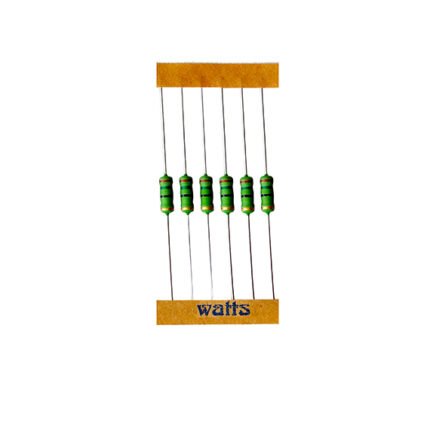

The WWT series resistors are wire wound resistors encased in ceramic tubes with leads set for axial mounting. WWT series offer a wide range of resistors in the range 100mΩ to 10KΩ, with power ratings 1W to 10W.
Enquire Now
Categories: DIP, Resistors
Share:
  • Description
  • ELECTRICAL PERFORMANCE
Description

SPECIFICATION

Type Wattage DIMENSIONS IN MM Range in OHMS 0Ω] Tolerance
W H L d
WWT 1 1 6 6 12 0.60 ± 0.02 0.1 470 5%
WWT 2 2 6 6 15 0.65 ± 0.02 0.1 680 5%
WWT 3 3 6 6 15 0.75 ± 0.05 0.1 1K 5%
WWT 4 4 7 7 20 0.75 ± 0.05 0.1 1K 5%
WWT 5 5 7 7 25 0.75 ± 0.05 0.1 3K3 5%
WWT 7 7 9 9 25 0.80 ± 0.05 0.1 10K 5%
WWT 10 10 9 9 38 0.80 ± 0.05 0.1 10K 5%

All Size in mm

ELECTRICAL PERFORMANCE
ELECTRICAL PERFORMANCE
Tests Condition Spec
Resistance Temp. Coeff. -55°C ~ 200°C ± 200 ppm/°C
Short Time Overload 5 times of rated wattag e for 5 sec for upto 3w10 times of rated wattage for 5 sec. above 3w ±2%
Rated Load Rated voltage for 30 min. ± 0.5%
Insulation Resistance 500 V megger 1,000MΩ
Load Life 70°C on-off cycle 1,000hrs. ±3%
