SPECIFICATION |
|||||||
| Type | Wattage Range [W] | Range in OHMS [mΩ] | Tolerance | Lead Diameter | Diagram | ||
| WCSOA | 2 | 10 | 2 | 20 | 5% | 0.80 ± 0.05 |  |
| WCSOR | 2 | 10 | 2 | 20 | 5% | 0.80 ± 0.05 |  |
| WCSOV | 2 | 10 | 2 | 20 | 5% | 0.80 ± 0.05 |  |
LOW OHM CURRENT SENSING RESISTORS OPEN FRAME
The WCSOA/WCSOR/WCSOV low ohm current sensing resistors are manufactured with high purity Ni-Cr/Cu-Ni element. These are open type resistors. WATTS offers these resistors ranging from 2mΩ to 20mΩ, having power rating from 2W to 10W.

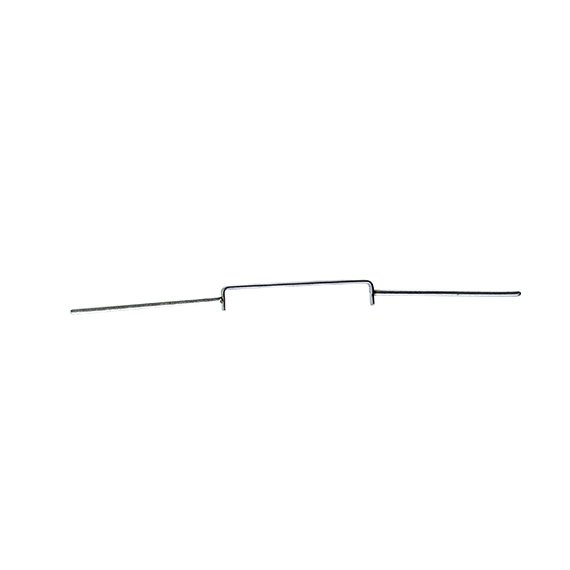

- WCSOA is axial type resistor.
- WCSOR is radial pre-formed type resistor.

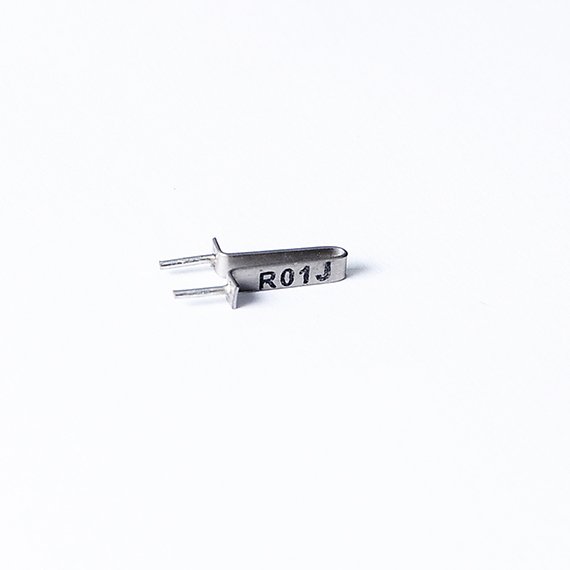

- WCSOV is PCB mounting shunt type resistor.
Description
Related products

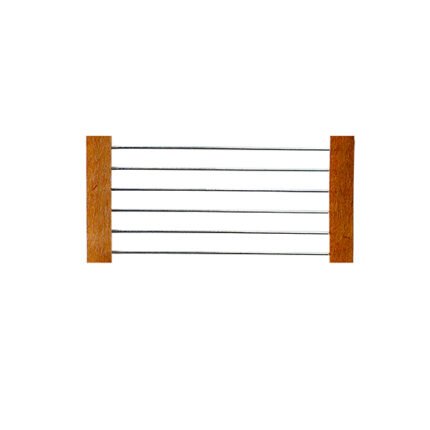

ZERO OHM RESISTOR / JUMPER WIRE
The WC12/WC25/WM12/WM25 zero ohm resistors are manufactured to give extremely low resistance value. A single black band indicates that the resistor is Zero ohm. The WJ jumper wires are manufactured using high grade tin plated electrolytic copper wire. This is provided in taped form having 5mm pitch.
METAL GLAZE RESISTORS
The WMG Series Metal Glaze Resistors are manufactured with the latest sintering process to get the most stable thick metal glaze film. The resistors are insulated with light blue lacquer. WMG series offers a wide range of power rating (0.25W, 0.50W, 1W & 2W) in tolerance ±1% and ±5% with TCR less than 100 ppm/ºC
WIRE WOUND RESISTORS – NON INDUCTIVE
The WWN series wire wound resistors - non inductive have very low inductance (less than 1µH), high heat dissipation and low TCR. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWN series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional yellow band indicates that the resistor is Non Inductive. For resistors 6W and above, the value is printed on the resistor.
WIRE WOUND RESISTORS – SILICONE COATED
The WWS series wire wound resistors are manufactured using high quality resistance wires wound on ceramic substrates. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWS series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional black band indicates that the resistor is wire wound. For resistors 6W and above, the value is printed on the resistor.
WIRE WOUND FUSIBLE RESISTOR – HIGH SURGE IMMUNITY
The WWFHS series wire wound fusible high surge immune resistors are manufactured to perform as a regular resistor under normal conditions and as a fuse under excessive load. These fusible resistors have high surge voltage immunity. In WWFHS series, for resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional white band indicates that the resistor is fusible. For resistors 6W and above, the value is printed on the resistor.
METAL FILM RESISTORS
The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WMF series offer a wide range of power rating (0.125W, 0.25W, 0.40W, 0.50W, 1W, 2W & 3W), tolerances (0.1%, 0.5%, 1%, 2%, 5%) and TCRs (15, 25,50 & 100 ppm/ºC)

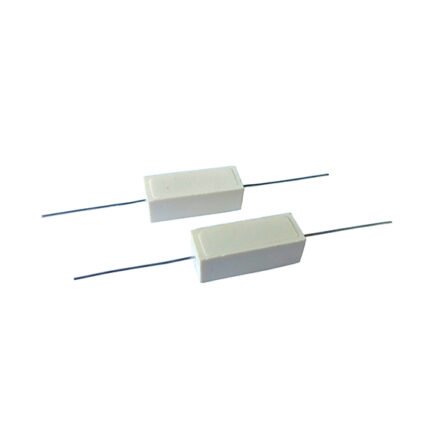

LOW OHM CURRENT SENSING RESISTORS CERAMIC ENCASED
