SPECIFICATION |
|||||||
| Type No. | Maximum working Voltage | Maximum Over Load Voltage | Dielectric Voltage | Surge with standing voltage | Range | ||
| <1M | 1M1-6M2 | >6M2 | |||||
| WMG 25 / WMG 50M | 1500 V | 3000 V | 500 V | 3000 V | 4000 V | 6000 V | 50K – 1000M |
| WMG 50 / WMG 100M | 2000 V | 4000 V | 700 V | 4000 V | 5000 V | 8000 V | 50K – 1000M |
| WMG 100 / WMG 200M | 3000 V | 5000 V | 1000 V | 5000 V | 6000 V | 9000 V | 50K – 1000M |
| WMG 200 / WMG 300M | 4000 V | 8000 V | 1000 V | 8000 V | 9000 V | 10 KV | 50K – 1000M |
METAL GLAZE RESISTORS

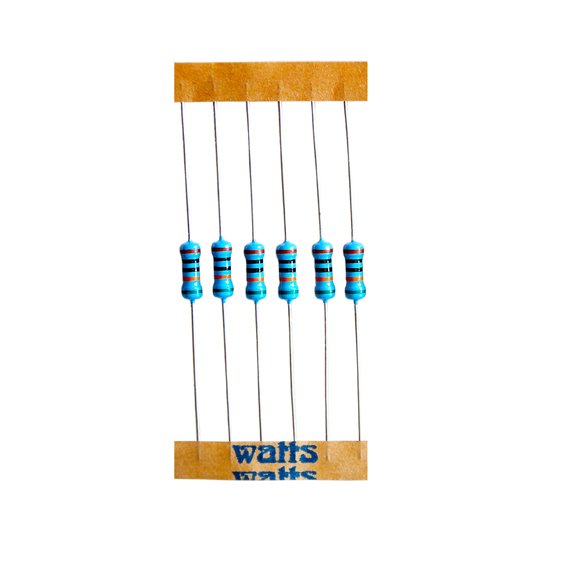

The WMG Series Metal Glaze Resistors are manufactured with the latest sintering process to get the most stable thick metal glaze film. The resistors are insulated with light blue lacquer. WMG series offers a wide range of power rating (0.25W, 0.50W, 1W & 2W) in tolerance ±1% and ±5% with TCR less than 100 ppm/ºC

Description
CHARACTERISTICS
DIMENSIONS (in mm)
| TYPE WMG 25 / WMG 50M | H = 26 ± 2 | L = 6.0 ± 0.4 | D = 2.2 ± 0.1 | d = 0.50 ± 0.05 |
| TYPE WMG 50 / WMG 100M | H = 26 ± 2 | L = 9.0 ± 0.5 | D = 3.2 ± 0.2 | d = 0.60 ± 0.05 |
| TYPE WMG 100 / WMG 200M | H = 26 ± 2 | L = 11 ± 1.0 | D = 4.3 ± 0.5 | d = 0.65 ± 0.05 |
| TYPE WMG 200 / WMG 300M | H = 26 ± 2 | L = 15 ± 1.0 | D = 5.0 ± 0.5 | d = 0.75 ± 0.05 |

STANDARD RESISTANCE VALUE
E 24 Series
| 10 | 11 | 12 | 13 | 15 | 16 | 18 | 20 | 22 | 24 | 27 | 30 |
| 33 | 36 | 39 | 43 | 47 | 51 | 56 | 62 | 68 | 75 | 82 | 91 |
E 96 Series
| 100 | 102 | 105 | 107 | 110 | 113 | 115 | 118 | 121 | 124 | 127 | 130 | 133 | 137 | 140 | 143 |
| 147 | 150 | 154 | 158 | 162 | 165 | 169 | 174 | 178 | 182 | 187 | 191 | 196 | 200 | 205 | 210 |
| 215 | 221 | 226 | 232 | 237 | 243 | 249 | 255 | 261 | 267 | 274 | 280 | 287 | 294 | 301 | 309 |
| 316 | 324 | 332 | 340 | 348 | 357 | 365 | 374 | 383 | 392 | 402 | 412 | 422 | 432 | 442 | 453 |
| 464 | 475 | 487 | 499 | 511 | 523 | 536 | 549 | 562 | 576 | 590 | 604 | 619 | 634 | 649 | 665 |
| 681 | 698 | 715 | 732 | 750 | 768 | 787 | 806 | 825 | 845 | 866 | 887 | 909 | 931 | 953 | 976 |

| Colour | lst figure | 2nd figure | 3rd figure | Multiplier | Tolerance |
|---|---|---|---|---|---|
| Black | 0 | 0 | 0 | 1 | |
| Brown | 1 | 1 | 1 | 10 | ± 1% |
| Red | 2 | 2 | 2 | 100 | ± 2% |
| Orange | 3 | 3 | 3 | 1,000 | |
| Yellow | 4 | 4 | 4 | 10,000 | |
| Green | 5 | 5 | 5 | 100,000 | ± 0.5% |
| Blue | 6 | 6 | 6 | 1,000,000 | ± 0.25% |
| Violet | 7 | 7 | 7 | 10,000,000 | ± 0.1% |
| Gray | 8 | 8 | 8 | ||
| White | 9 | 9 | 9 | ||
| Gold | 0.1 | ± 5% | |||
| Silver | 0.01 | ± 10% |
