Home Resistors CARBON FILM RESISTORS
TOGGLE SWITCHES
TOGGLE SWITCHES ₹250.00
Back to products
LED CHIP RESISTOR
LED CHIP RESISTOR ₹250.00

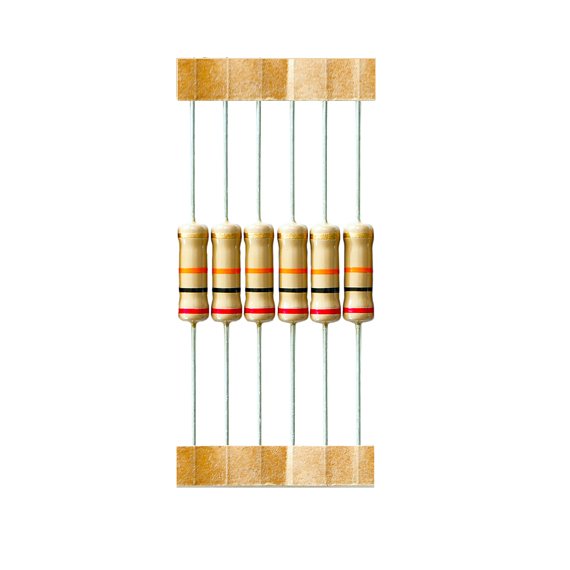

CARBON FILM RESISTORS

₹250.00

Enquire Now
Category: Resistors
Share:
  • Description
Description
The WCF Series Carbon Film Resistors are manufactured using mechanised high vacuum carbonising plants. This ensures a stable resistive film. The resistors are insulated with layers of light brown lacquer. The WCF series offer a wide range of power ratings (0.125 W, 0.25W, 0.4W, 0.5W, 1W, 2W & 3W) with a tolerance of ± 5%. and TCR ±1000 ppm/ºC.

Related products

WIRE WOUND CERAMIC ENCASED RESISTORS

Resistors, DIP
Boat, Vertical Mounting
The WWV series resistors are wire wound resistors encased in ceramic boat with leads set for vertical mounting. WATTS offers these resistors ranging from 100mΩ to 10KΩ, with power ratings of 1W to 10W.
Quick view

WIRE WOUND FUSIBLE RESISTORS

Resistors, DIP
The WWF series wire wound fusible resistors are manufactured to perform as a regular resistor under normal conditions and as a fuse under excessive load. In WWF series, resistors up to 5W, the resistance value is colour coded with 3 bands plus a tolerance band. An additional white band indicates that the resistor is fusible. For resistors 6W and above, the value is printed on the resistor.
Quick view

WIRE WOUND RESISTORS – NON INDUCTIVE

Resistors, DIP
The WWN series wire wound resistors - non inductive have very low inductance (less than 1µH), high heat dissipation and low TCR. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWN series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional yellow band indicates that the resistor is Non Inductive. For resistors 6W and above, the value is printed on the resistor.
Quick view

LOW OHM CURRENT SENSING RESISTORS OPEN FRAME

Resistors, DIP
The WCSOA/WCSOR/WCSOV low ohm current sensing resistors are manufactured with high purity Ni-Cr/Cu-Ni element. These are open type resistors. WATTS offers these resistors ranging from 2mΩ to 20mΩ, having power rating from 2W to 10W.
  • WCSOA is axial type resistor.
  • WCSOR is radial pre-formed type resistor.
  • WCSOV is PCB mounting shunt type resistor.
Quick view

AUTOMOTIVE GRADE THICK FILM CHIP RESISTORS

Resistors
The CR-A series Automotive Grade Thick Film Chip Resistors are manufactured by screening a metal glaze layer on a high grade ceramic body. The different resistance values are obtained by using different compositions of metal glaze. The end contacts are made to ensure optimum solderability and terminal strength. The resistive layers are given a non-flammable protective coating. The CR-A series is AEC-Q200 compliant. The CR-A series offer a wide range of power ratings from 1/20W to 1W and are available in tolerance ranges of ±1% and ±5% with insulation Resistance ? 1000M?. Miniature size, excellent mechanical strength and electrical stability ensures reduced costs and enhances dependability.
Quick view

WIRE WOUND CERAMIC ENCASED RESISTORS

Resistors, DIP
Tube, Axial Mounting
The WWT series resistors are wire wound resistors encased in ceramic tubes with leads set for axial mounting. WWT series offer a wide range of resistors in the range 100mΩ to 10KΩ, with power ratings 1W to 10W.
Quick view

ZERO OHM RESISTOR / JUMPER WIRE

Resistors, DIP
The WC12/WC25/WM12/WM25 zero ohm resistors are manufactured to give extremely low resistance value. A single black band indicates that the resistor is Zero ohm. The WJ jumper wires are manufactured using high grade tin plated electrolytic copper wire. This is provided in taped form having 5mm pitch.
Quick view

METAL FILM RESISTORS

Resistors, DIP
The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WMF series offer a wide range of power rating (0.125W, 0.25W, 0.40W, 0.50W, 1W, 2W & 3W), tolerances (0.1%, 0.5%, 1%, 2%, 5%) and TCRs (15, 25,50 & 100 ppm/ºC)
Quick view
