LOW OHM CURRENT SENSING RESISTORS OPEN FRAME
LOW OHM CURRENT SENSING RESISTORS OPEN FRAME

LOW OHM CURRENT SENSING RESISTORS CERAMIC ENCASED

The WCSB/WCST/WCSV low ohm current sensing resistors are manufactured with high purity Ni-Cr/Cu-Ni element. These are ceramic encased resistors. WATTS offers these resistors ranging from 2mΩ to 50mΩ, having power rating from 2W to 10W.

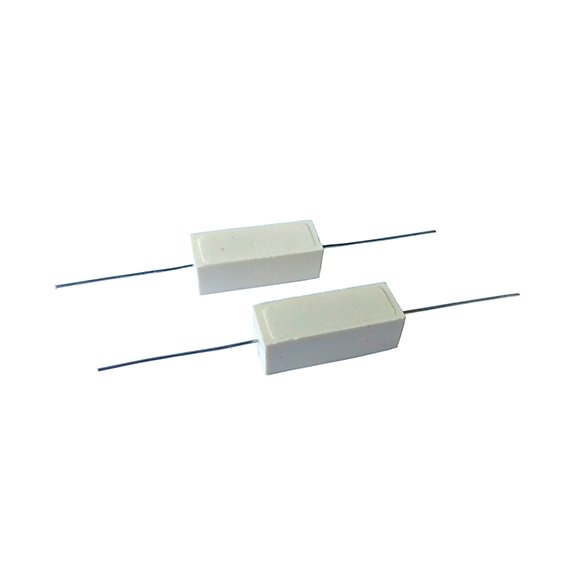

  • WCSB is axial type ceramic boat encased resistor.

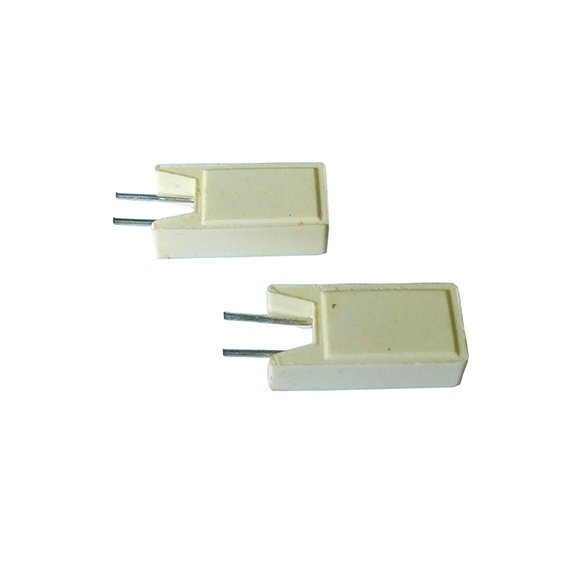

  • WCSV is vertical type ceramic boat encased resistor.

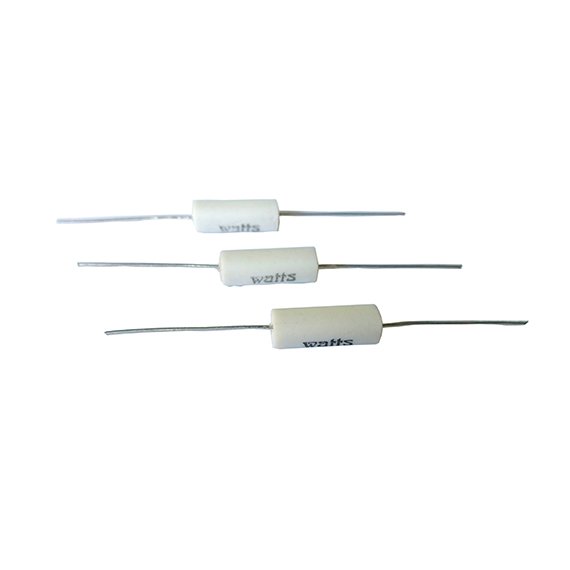

  • WCST is axial type ceramic tube encased resistor.

Enquire Now
Categories: DIP, Resistors
Share:
  • Description
Description
TYPE No. WCSB

Type Wattage DIMENSIONS IN MM Range in OHMS ( Ω ) Tolerance
W H L d
WCSB 1 1 5.5 5.5 13 0.80 ± 0.05 2 50 5%
WCSB 2 2 7.5 7.5 18 0.80 ± 0.05 2 50 5%
WCSB 3 3 7.5 7.5 18 0.80 ± 0.05 2 50 5%
WCSB 4 4 8.5 8.5 20 0.80 ± 0.05 2 50 5%
WCSB 5 5 10 10 22 0.80 ± 0.05 2 50 5%
WCSB 7 7 13 13 31 0.80 ± 0.05 2 50 5%
WCSB 10 10 13 13 36 0.80 ± 0.05 2 50 5%
TYPE No. WCST

Type Wattage DIMENSIONS IN MM Range in OHMS ( Ω ) Tolerance
W H L d
WCST 1 1 6 6 12 0.80 ± 0.05 2 50 5%
WCST 2 2 6 6 15 0.80 ± 0.05 2 50 5%
WCST 3 3 6 6 15 0.80 ± 0.05 2 50 5%
WCST 4 4 7 7 20 0.80 ± 0.05 2 50 5%
WCST 5 5 7 7 25 0.80 ± 0.05 2 50 5%
WCST 7 7 9 9 25 0.80 ± 0.05 2 50 5%
WCST 10 10 9 9 38 0.80 ± 0.05 2 50 5%
TYPE No. WCSV

Type Wattage DIMENSIONS IN MM Range in OHMS ( Ω ) Tolerance
D L H d
WCSV 1 1 3.2 9 28 0.80 ± 0.05 2 50 5%
WCSV 2 2 4.25 11 28 0.80 ± 0.05 2 50 5%
WCSV 3 3 5 15 28 0.80 ± 0.05 2 50 5%
WCSV 4 4 5 15 28 0.80 ± 0.05 2 50 5%
WCSV 5 5 6 17 33 0.80 ± 0.05 2 50 5%
WCSV 7 7 8 25 38 0.80 ± 0.05 2 50 5%
WCSV 10 10 8 30 38 0.80 ± 0.05 2 50 5%

Value marking in letter print and packing in bulk packet
